Klein Non-Contact Voltage Tester Pen with Laser Distance Meter

Klein Non-Contact Voltage Tester Pen with Laser Distance Meter

Klein Tools

Model: NCVT-6

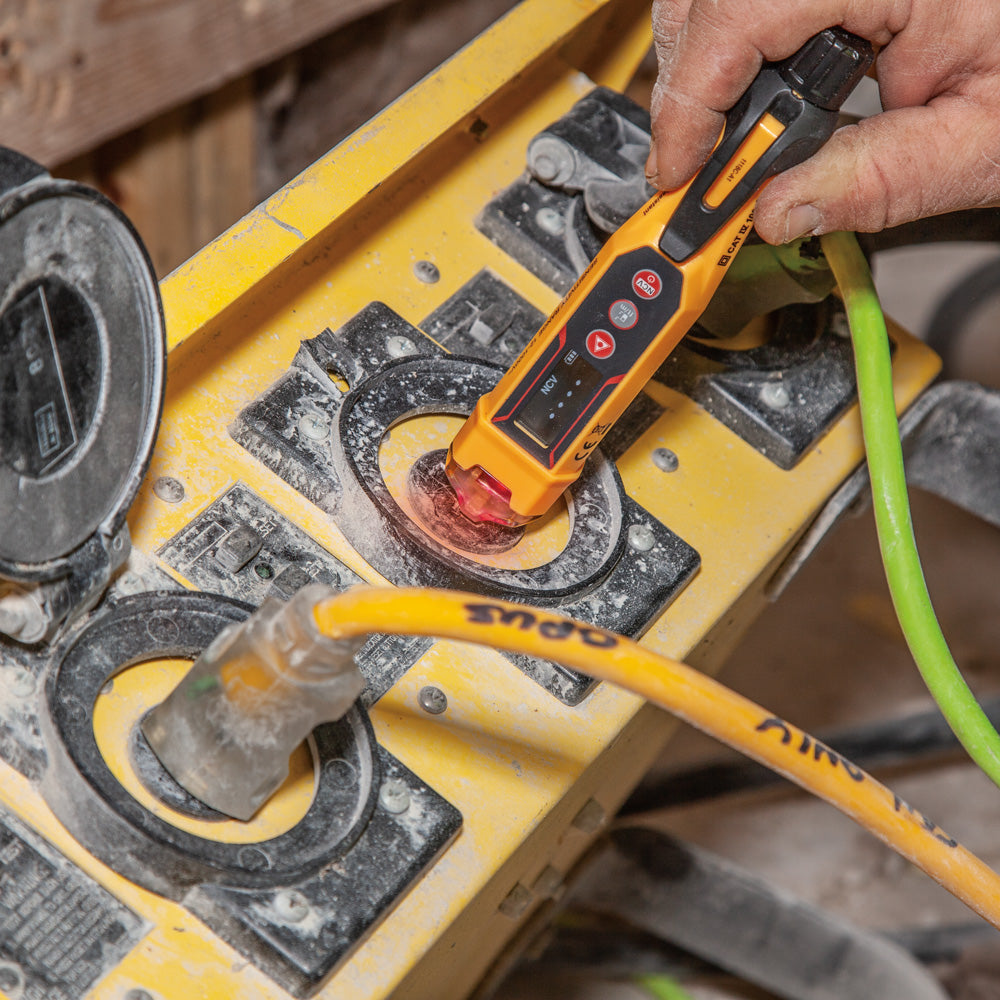

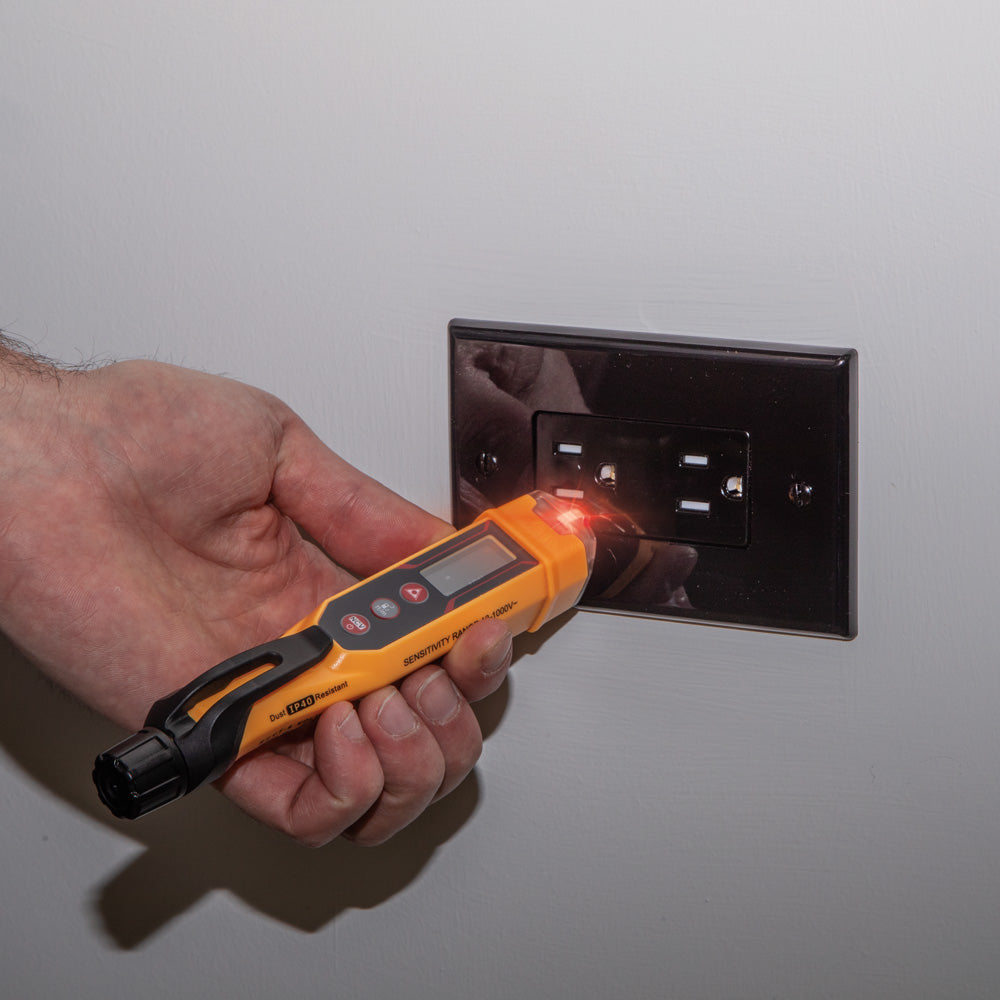

Non-contact Tester determines AC voltage in cables, cords, circuit breakers, switches, outlets, wires, as well as security, entertainment, communications, environmental control, and irrigation systems

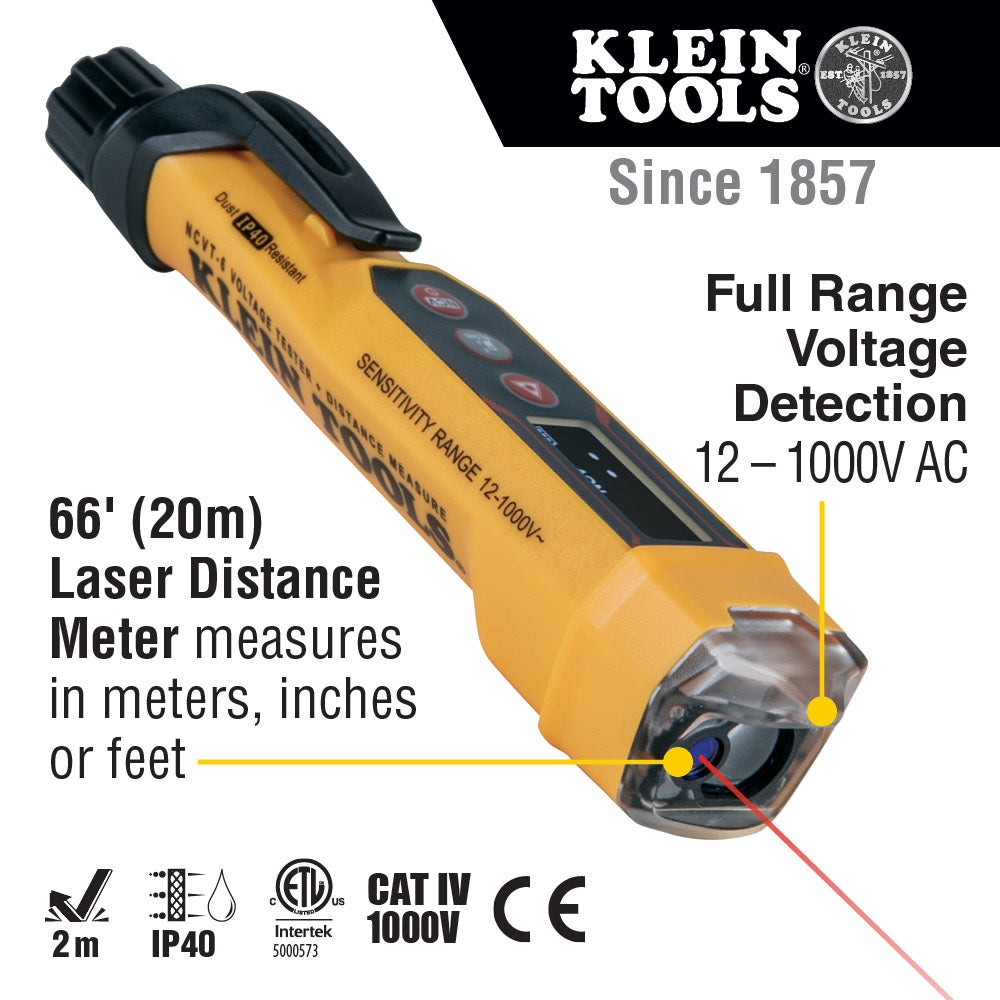

Volt Pen detects AC voltage from 12 to 1000V with visual and audible indicators

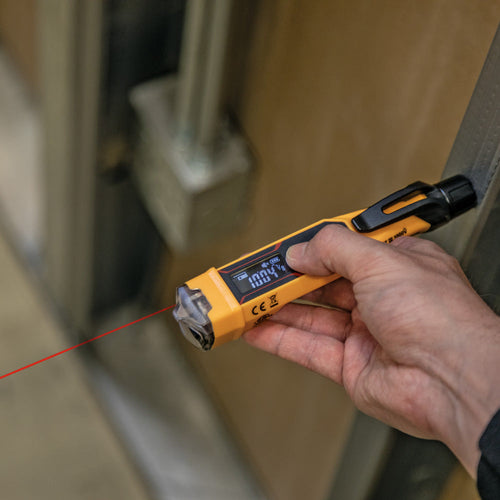

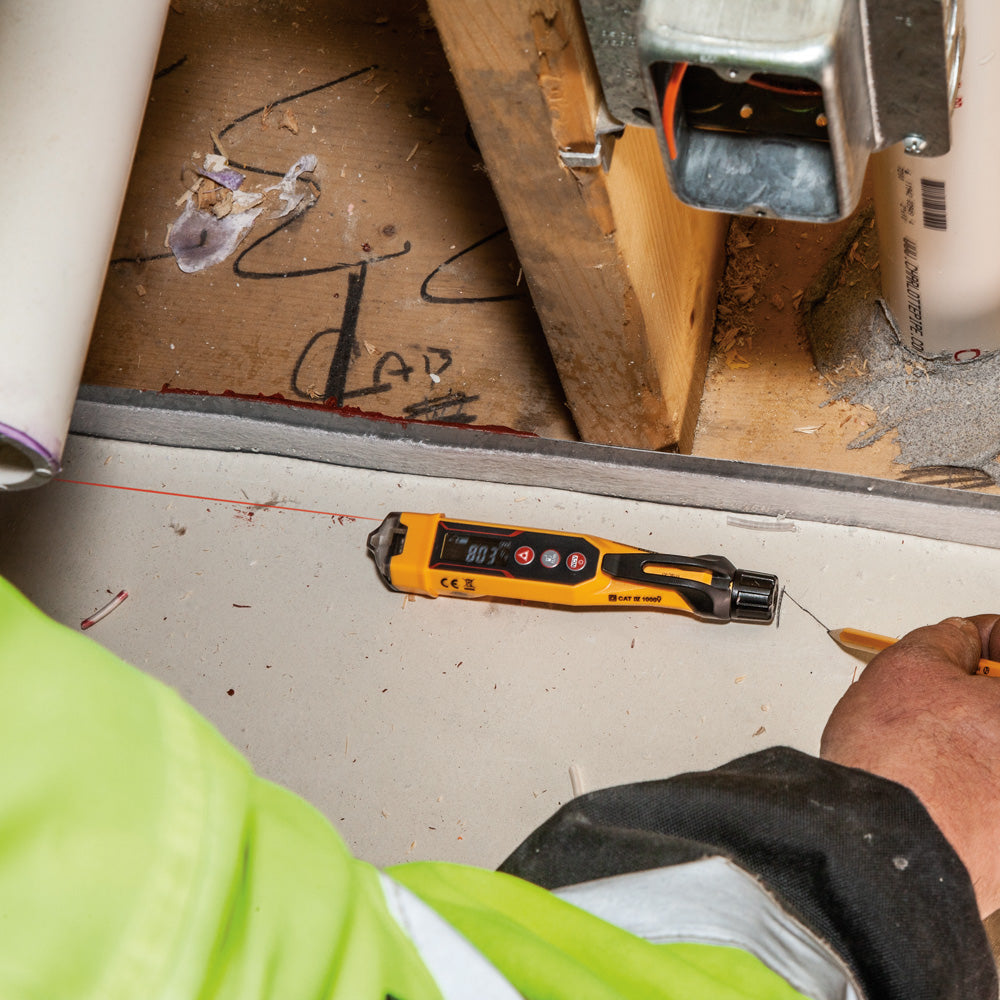

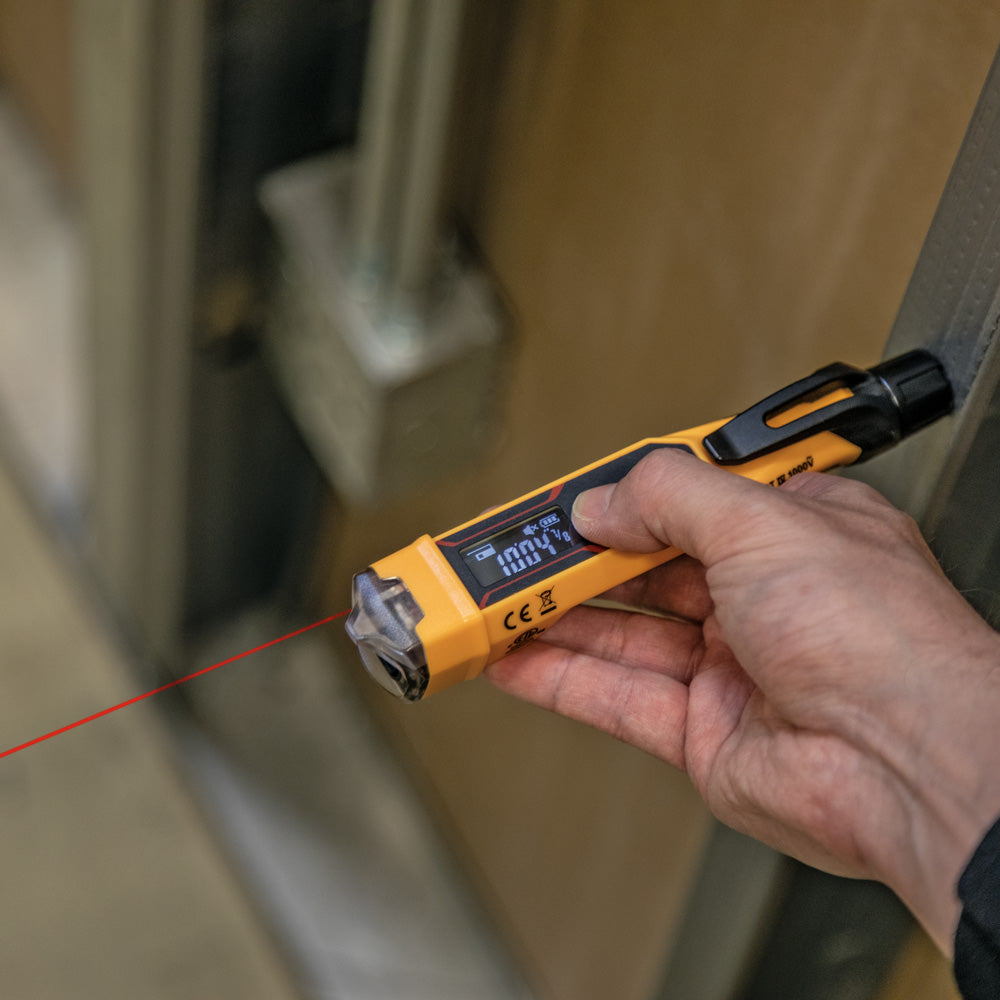

Incorporates a 66-Foot (20 m) Laser Distance Meter that can measure in meters, inches in fractions or decimals, and feet in fractions or decimals, with accuracy up to 1/16-Inch (0.16 cm)

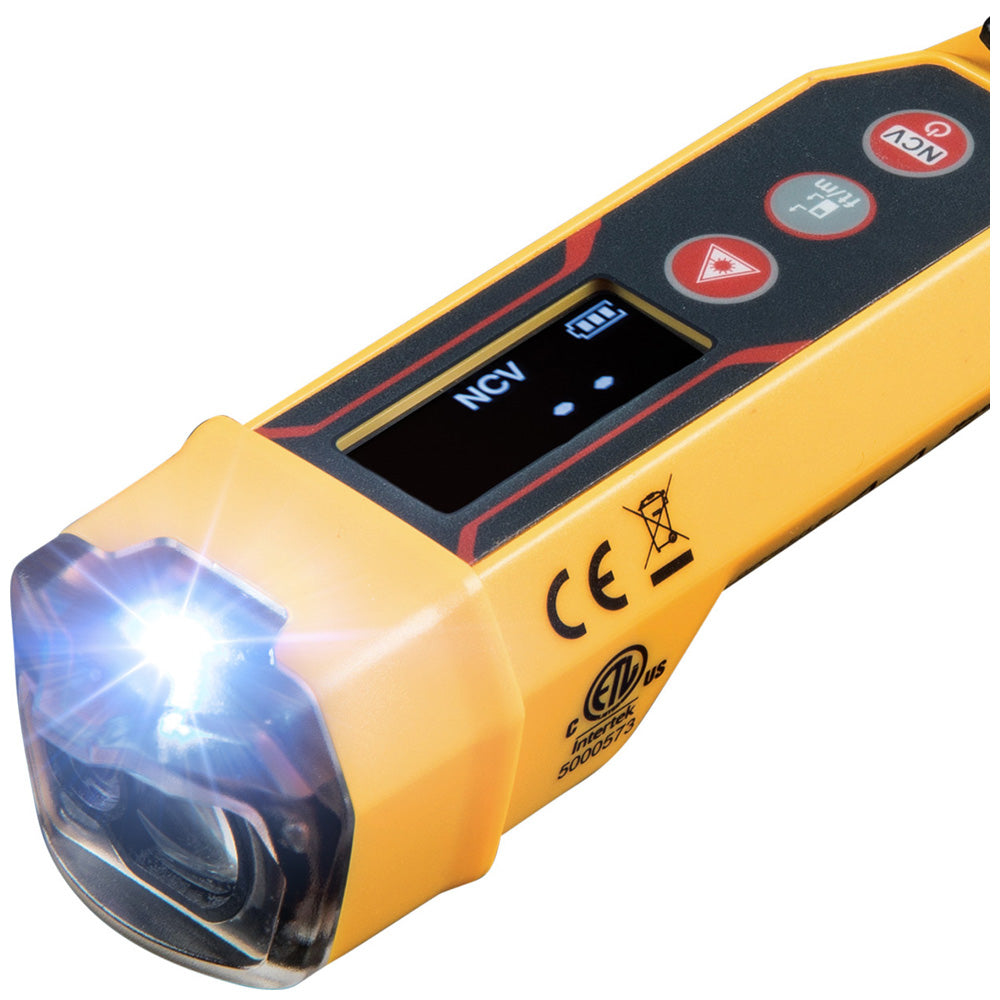

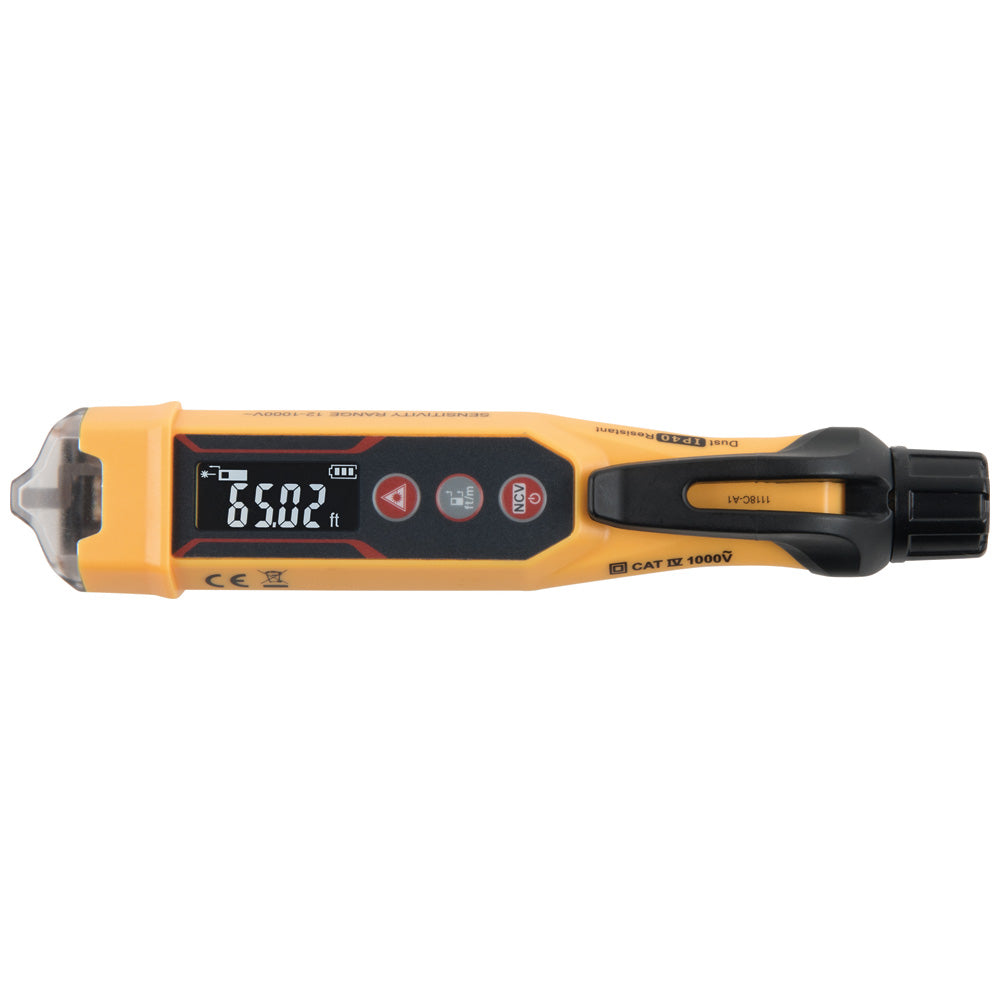

High-visibility reverse contrast display for better viewing in low light conditions
Laser Class II, 630 to 670nm, Max. Power <1mW
Simple-to-use intuitive interface; easy single-button changes between laser distance measurements and voltage detection
Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
Built to withstand a 6.6-Foot (2 m) drop
Auto Power-Off conserves and extends battery life
Screw-thread battery cap
Lightweight tool with pocket clip for easy everyday carrying and storage
CAT IV 1000V safety rating
Ingress Protection IP40 Dust Resistant

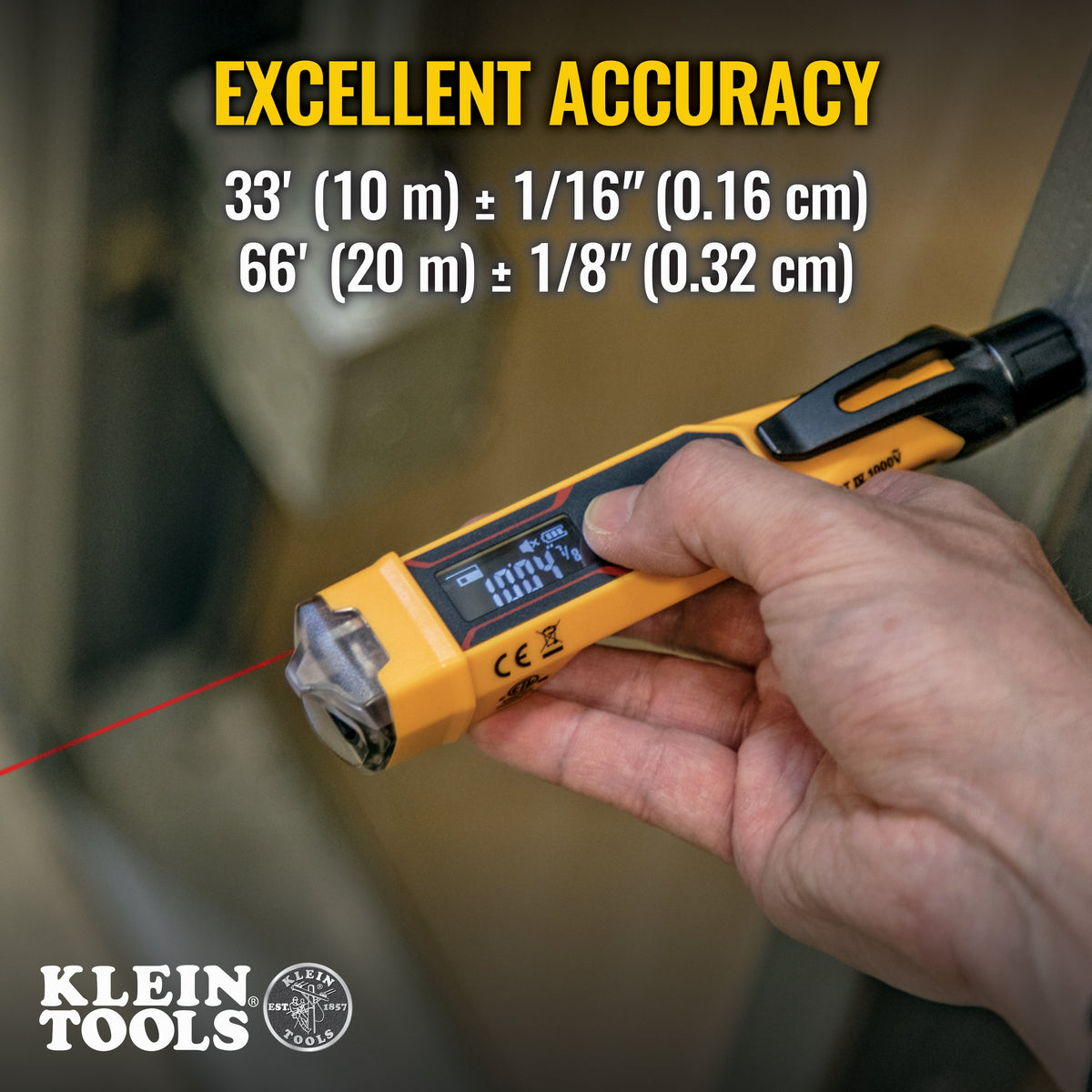

Under normal operating conditions, at distances from 2-Inch to 32.8-Foot the NCVT-6 has an accuracy of +/- 1/16-Inch; and at distances greater than 32.8-Foot up to 65.6-Foot, accuracy of +/- 1/8-Inch

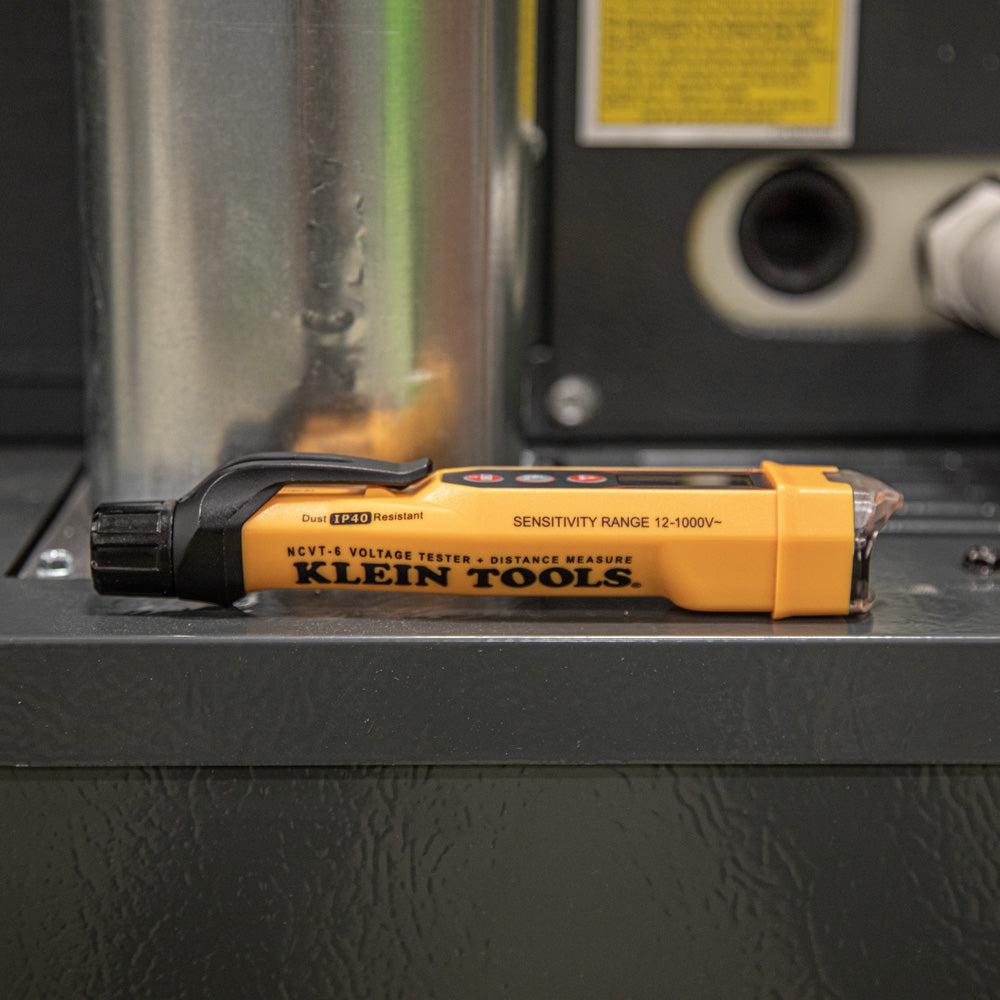

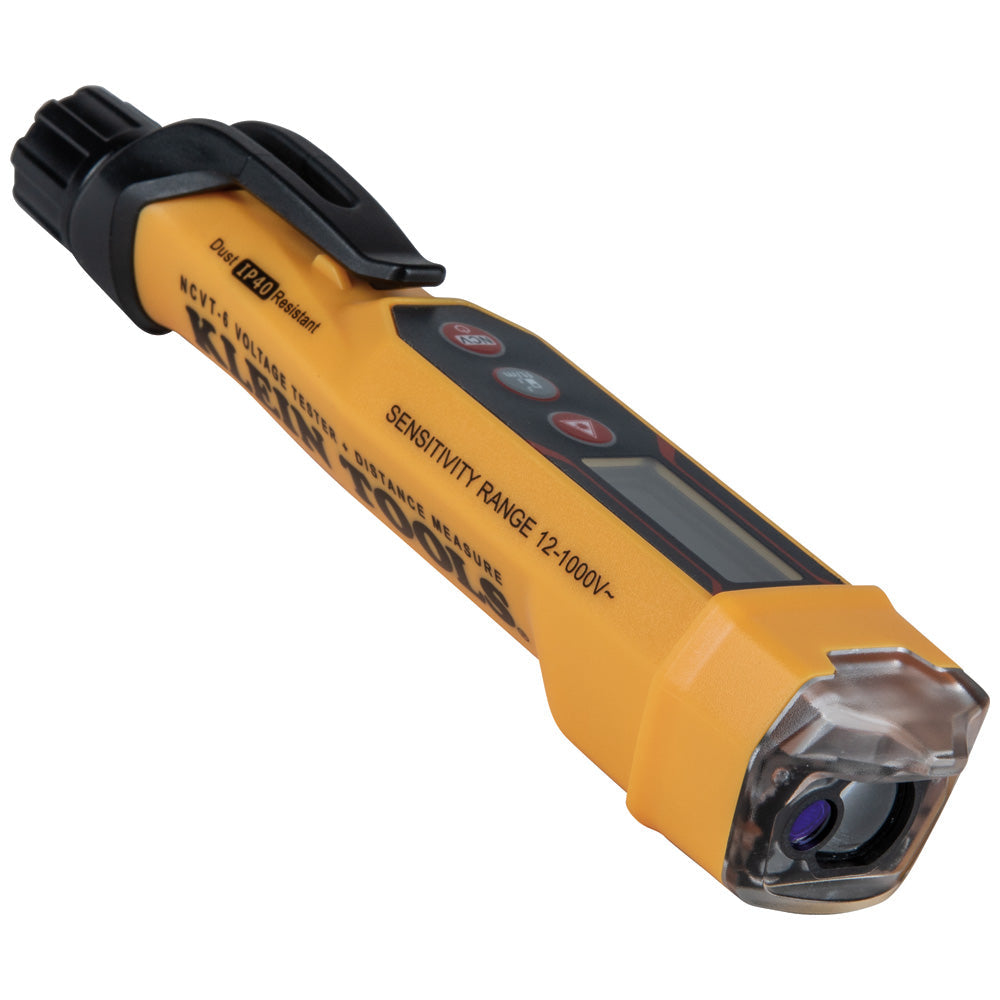

The Klein Tools NCVT-6 is a non-contact voltage tester (NCVT) with an integrated laser distance meter. It can detect voltage over the full-range from 12 to 1000 VAC and can measure distances from 2-Inch (51 mm) up to 66-Feet (20 m). The laser distance meter functions independently from the NCVT with a simple-to-use intuitive interface. Easy, single-button changes between voltage detection and laser distance measurements.

Specifications

Type:	Non-Contact Voltage Tester
Application:	Non-Contact Detection and Testing of AC Voltage with Integrated Laser Distance Meter
Special Features:	Full-Range Voltage Detection From 12-1000 VAC with Visual and Audible Indicators; Laser Distance Meter; High Visibility Reverse Contrast Display
Material:	Plastic and Electronic Assemblies
Drop Protection:	6.6' (2 m)
Voltage:	12-1000 VAC
Frequency:	50 - 500 Hz
Pollution Degree:	2
Ingress Protection:	IP40 Dust Resistant
Standard:	CATIV 1000V, Laser: Class II, 630nm to 670nm, Max. Power <1mW
Included:	2 x Alkaline 1.5V AAA Batteries
Batteries:	2 x AAA
Overall Length:	6.45'' (16.4 cm)
Overall Height:	1.32'' (3.4 cm)
Overall Width:	1.21'' (3.1 cm)
Weight:	2.5 oz (72 g)

WARNINGS

Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
LASER RADIATION, Class II laser. DO NOT direct laser beam into eyes, DO NOT stare into the beam, or DO NOT view directly with optical instruments as this can cause severe and permanent eye damage.
Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
