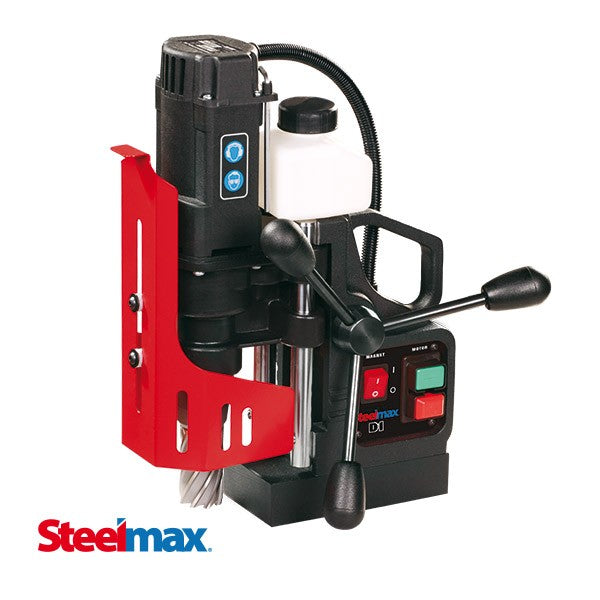

Steelmax D1 Compact Portable Magnetic Drill

Description

The D1 is an ultra-compact magnetic drilli with maximum capacity of 1-3/8″ (36 mm) diameter in 2″ (51 mm) thick material. The unit’s ultra light weight of 22 lbs (10 kg) is the lowest in its class.  The maintenance-free rail guide system minimizes run-out, maintains accuracy and reduces cutter breakage.

The D1 is equipped with an electromagnetic Energy Saving Base (ESB) which uses only 50% of the power when the motor is not under load, dramatically increasing the operating life of the electromagnet, and a Magnetic Field Shape Control (MFSC) system which provides maximum holding power on thin material.  Safe Magnet™ circuitry assures adequate adhesive force for safe operation.

D1 COMPACT PORTABLE MAGNETIC DRILL FEATURES:

• Ultra compact and light weight: 14-3/4″ working height (with coolant bottle) and only 22 pounds
• Adjustable cutter guard with built-in chip breaker
• Through spindle coolant system with removable reservoir
• Maintenance free rail guide system for long life, minimal run-out and extreme accuracy
• Safe Magnet™ circuitry recognizes magnetic holding power
• Automatic slug ejection system
• Magnet is 1/3 smaller, lighter and stronger than competing models
• Magnet uses only 50% power when motor is not under load
• Designed for easy field service and repair
• All aluminum parts are heat treated for rigidity
