Weldmark RC 250 Single Stage Medium Duty Acetylene

Weldmark RC 250 Single Stage Medium Duty Acetylene

Weldmark

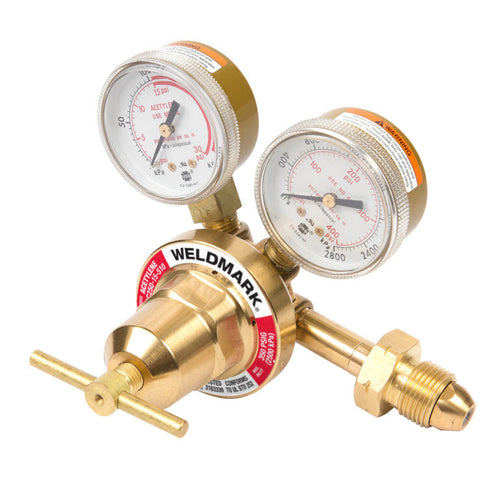

The Weldmark® by Victor RC 250 manufactured by IWDC is a medium duty, medium capacity, single stage, industrial regulator, designed to be used with acetylene. Best paired with industry types such as fabrication, and maintenance and repair, for application of welding, cutting, and heating. This 2 in diameter gauge is made with a brass body and bonnet, and neoprene diaphram. Connection details include 0.88 in male side port 510 CGA inlet, with NGO thread standard at 14 threads per inch, and 0.5625 in male 023 CGA outlet, with a left hand UNF standard thread at 18 threads per inch. The inlet pressure cylinder max is rated at 350 psi, inlet pressure gauge max rated at 400 psi, and inlet pressure max rated at 350 psi. The outlet pressure min/max is rated at 2/15 psi, and outlet pressure gauge max is rated at 15 psi. Meets or exceeds UL Listed standards.
