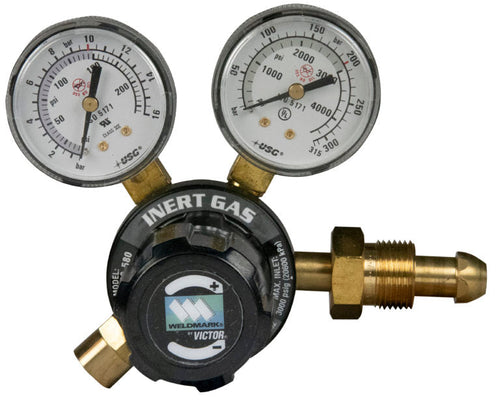

Weldmark G 250 Single Stage Medium Duty Inert Gas Regulator


The Weldmark® by Victor G 250 manufactured by IWDC is a medium duty, medium capacity, single stage, industrial regulator, designed to be used with inert gas. Best paired with industry types such as civil construction, general manufacturing, industrial and general fabrication, light fabrication, repair and maintenance, and structural steel fabrication. This 2 in diameter gauge is made with a brass body, and high strength alloy bonnet. Connection details include 0.96 in male side port 580 CGA inlet, with NGO thread standard at 14 threads per inch, and 0.625 in female 032 CGA outlet, with a right hand UNF standard thread at 18 threads per inch. The inlet pressure cylinder max is rated at 3000 psi, inlet pressure gauge max rated at 4000 psi, and inlet pressure max rated at 3000 psi. The outlet pressure min/max is rated at 0/150 psig, and outlet pressure gauge max is rated at 200 psi. Meets or exceeds UL Listed standards.
